  3. GI Hex Bolt - DIN 933
Default
GI

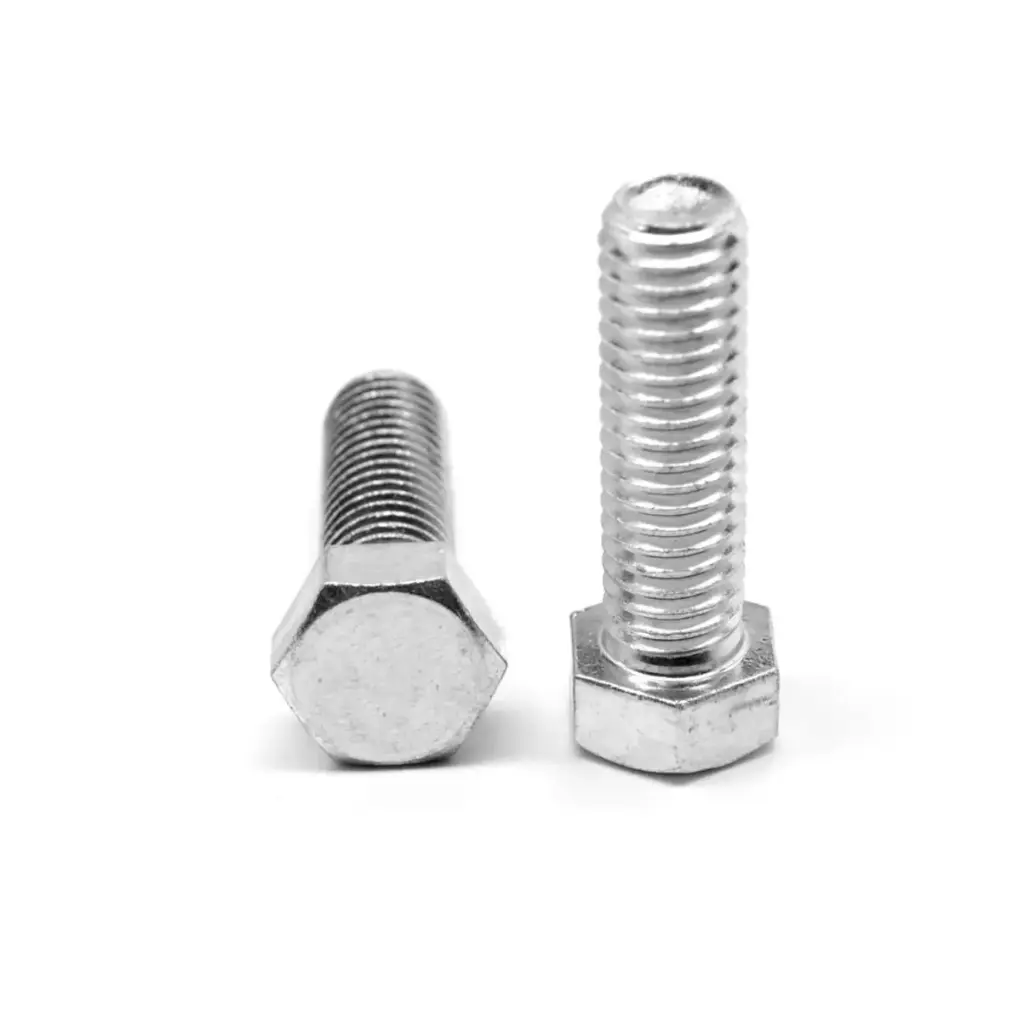

GI Hex Bolt - DIN 933

GI Hex Bolt - DIN 933

https://www.roxon.ae/web/image/product.template/53/image_1920?unique=a648618
(0 review)
DIN 933 Hex Bolt – Galvanized Iron (GI), equivalent to ISO 4017, is a partially threaded hex bolt manufactured to DIN 933 standards, zinc-coated for corrosion resistance. Ideal for medium-duty fastening in machinery, construction, and equipment assembly.
5 stars

Not Available For Sale

  • Size
  • Length

This combination does not exist.

Carbon Steel Grade 4.8 Galvanized (GI)
Note: Images shown are for illustration purposes only.


Contact Us

Terms and Conditions
 3-Days Return/Exchange Policy
Shipping: 2-3 Business Days

Share

Unit of Measure Name: kg

GI Hex Bolt - DIN 933: Variants, Specifications, and More

GI Hex Bolts – DIN 933 are full-thread hexagonal head bolts manufactured from mild steel and hot-dip galvanized for corrosion resistance. These bolts are used widely in construction, fabrication, machinery assembly, and outdoor installations where full-threaded fastening is required.

DIN 933 defines the standard for metric hex bolts with a full thread, and these are equivalent to ISO 4017. The zinc coating provides added durability and weather resistance, making them suitable for structural joints, support systems, and panel assemblies.

As one of the wholesale fasteners suppliers in UAE, Roxon Fasteners provides GI Hex Bolts in a wide range of sizes to meet industry demands for quality and reliability.

  • Suitable for steel fabrication and structural joints
  • Widely used in machinery assembly and equipment fastening
  • Ideal for HVAC, piping, and cable tray supports
  • Perfect for outdoor projects requiring corrosion resistance
  • Frequently used in marine, infrastructure, and heavy-duty utility sectors
StandardDIN 933 (Full Thread)
ISO EquivalentISO 4017
Thread TypeMetric Coarse
Head TypeHex Head
MaterialMild Steel
Surface FinishGI – Galvanized Iron (Zinc Electroplated)
Grade/ClassCommercial Grade
ComplainaceISO 4017 / ISO 891-1
Available SizesM6 to M24
Available Lengths25mm – 200mm
Variant Packaging
M6 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M6 x 40mm5kg / 10 kg / 25 kg / 50kg bags
M6 x 50mm5kg / 10 kg / 25 kg / 50kg bags
M6 x 60mm5kg / 10 kg / 25 kg / 50kg bags
M6 x 70mm5kg / 10 kg / 25 kg / 50kg bags
M6 x 80mm5kg / 10 kg / 25 kg / 50kg bags
M6 x 100mm5kg / 10 kg / 25 kg / 50kg bags
M6 x 120mm5kg / 10 kg / 25 kg / 50kg bags
M6 x 150mm5kg / 10 kg / 25 kg / 50kg bags
M8 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M8 x 40mm5kg / 10 kg / 25 kg / 50kg bags
M8 x 50mm5kg / 10 kg / 25 kg / 50kg bags
M8 x 60mm5kg / 10 kg / 25 kg / 50kg bags
M8 x 70mm5kg / 10 kg / 25 kg / 50kg bags
M8 x 80mm5kg / 10 kg / 25 kg / 50kg bags
M8 x 100mm5kg / 10 kg / 25 kg / 50kg bags
M8 x 120mm5kg / 10 kg / 25 kg / 50kg bags
M8 x 150mm5kg / 10 kg / 25 kg / 50kg bags
M10 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M10 x 40mm5kg / 10 kg / 25 kg / 50kg bags
M10 x 50mm5kg / 10 kg / 25 kg / 50kg bags
M10 x 60mm5kg / 10 kg / 25 kg / 50kg bags
M10 x 70mm5kg / 10 kg / 25 kg / 50kg bags
M10 x 80mm5kg / 10 kg / 25 kg / 50kg bags
M10 x 100mm5kg / 10 kg / 25 kg / 50kg bags
M10 x 120mm5kg / 10 kg / 25 kg / 50kg bags
M10 x 150mm5kg / 10 kg / 25 kg / 50kg bags
M12 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M12 x 40mm5kg / 10 kg / 25 kg / 50kg bags
M12 x 50mm5kg / 10 kg / 25 kg / 50kg bags
M12 x 60mm5kg / 10 kg / 25 kg / 50kg bags
M12 x 70mm5kg / 10 kg / 25 kg / 50kg bags
M12 x 80mm5kg / 10 kg / 25 kg / 50kg bags
M12 x 100mm5kg / 10 kg / 25 kg / 50kg bags
M12 x 120mm5kg / 10 kg / 25 kg / 50kg bags
M12 x 150mm5kg / 10 kg / 25 kg / 50kg bags
M16 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M16 x 40mm5kg / 10 kg / 25 kg / 50kg bags
M16 x 50mm5kg / 10 kg / 25 kg / 50kg bags
M16 x 60mm5kg / 10 kg / 25 kg / 50kg bags
M16 x 70mm5kg / 10 kg / 25 kg / 50kg bags
M16 x 80mm5kg / 10 kg / 25 kg / 50kg bags
M16 x 100mm5kg / 10 kg / 25 kg / 50kg bags
M16 x 120mm5kg / 10 kg / 25 kg / 50kg bags
M16 x 150mm5kg / 10 kg / 25 kg / 50kg bags
M20 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M20 x 40mm5kg / 10 kg / 25 kg / 50kg bags
M20 x 50mm5kg / 10 kg / 25 kg / 50kg bags
M20 x 60mm5kg / 10 kg / 25 kg / 50kg bags
M20 x 70mm5kg / 10 kg / 25 kg / 50kg bags
M20 x 80mm5kg / 10 kg / 25 kg / 50kg bags
M20 x 100mm5kg / 10 kg / 25 kg / 50kg bags
M20 x 120mm5kg / 10 kg / 25 kg / 50kg bags
M20 x 150mm5kg / 10 kg / 25 kg / 50kg bags
M14 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M14 x 40mm5kg / 10 kg / 25 kg / 50kg bags
M14 x 50mm5kg / 10 kg / 25 kg / 50kg bags
M14 x 60mm5kg / 10 kg / 25 kg / 50kg bags
M14 x 70mm5kg / 10 kg / 25 kg / 50kg bags
M14 x 80mm5kg / 10 kg / 25 kg / 50kg bags
M14 x 100mm5kg / 10 kg / 25 kg / 50kg bags
M14 x 120mm5kg / 10 kg / 25 kg / 50kg bags
M14 x 150mm5kg / 10 kg / 25 kg / 50kg bags
M18 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M18 x 40mm5kg / 10 kg / 25 kg / 50kg bags
M18 x 50mm5kg / 10 kg / 25 kg / 50kg bags
M18 x 60mm5kg / 10 kg / 25 kg / 50kg bags
M18 x 70mm5kg / 10 kg / 25 kg / 50kg bags
M18 x 80mm5kg / 10 kg / 25 kg / 50kg bags
M18 x 100mm5kg / 10 kg / 25 kg / 50kg bags
M18 x 120mm5kg / 10 kg / 25 kg / 50kg bags
M18 x 150mm5kg / 10 kg / 25 kg / 50kg bags
M22 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M22 x 40mm5kg / 10 kg / 25 kg / 50kg bags
M22 x 50mm5kg / 10 kg / 25 kg / 50kg bags
M22 x 60mm5kg / 10 kg / 25 kg / 50kg bags
M22 x 70mm5kg / 10 kg / 25 kg / 50kg bags
M22 x 80mm5kg / 10 kg / 25 kg / 50kg bags
M22 x 100mm5kg / 10 kg / 25 kg / 50kg bags
M22 x 120mm5kg / 10 kg / 25 kg / 50kg bags
M22 x 150mm5kg / 10 kg / 25 kg / 50kg bags
M24 x 25mm5kg / 10 kg / 25 kg / 50kg bags
M24 x 40mm5kg / 10 kg / 25 kg / 50kg bags
